Datasheet: Phynox†

Phynox†

This Cobalt-Chromium-Nickel alloy gives a combination of high strength, ductility and good mechanical properties and is age hardenable. Phynox† also has excellent fatigue life, corrosion resistance in numerous environments and is non-magnetic.

Phynox† often provides the ideal solution whenever high mechanical performance is required under severely corrosive service conditions. Its mechanical strength increases with cold rolling strain, while additional strengthening can be achieved by age hardening at 520°C.

It is recommended to use Phynox† where a high resistance to corrosion and / or low relaxation at temperatures up to 380°C (715°F) are required. This alloy is used in medical devices, dental products, surgical implants and orthopedics.

Phynox† is also known as Elgiloy, Conichrome and Alloy 3J21.

Available in all profile options

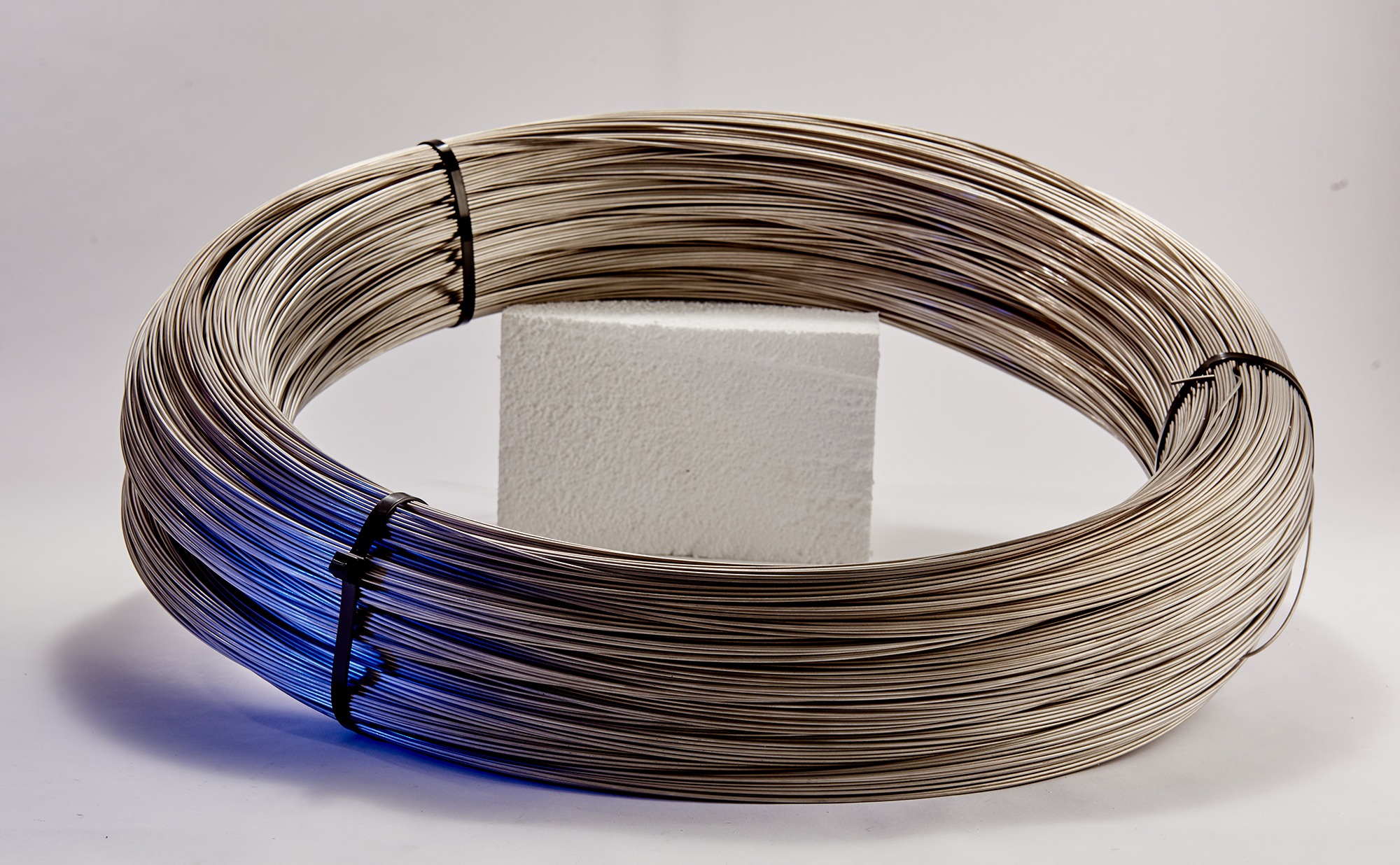

Phynox† - Alloy Wire International 1

Key Features

Phynox offers the following key features:

Combination of high strength, ductility and good mechanical properties at ambient temperatures.
Excellent fatigue life.
Excellent corrosion resistance in numerous environments.
Non magnetic.
Age hardenable (Spring Temper only).
Good for sea water applications.

Typical Applications

Phynox is known to be suitable for the following applications:

Springs
Seal components
Medical devices
Components for watches
Aerospace applications
Petrochemical applications
Marine engineering


Designations

W.Nr 2.4711
UNS R30003
UNS R30008
AWS 100

Specifications

AMS 5833
AMS 5834
AMS 5876
ASTM F1058
ISO 5832-7
ISO 15156-3
(NACE MR 0175)

Chemical Composition

The chemical composition of Phynox is indicated in the table below:

ElementMin %Max %
C0.15
Mn1.502.50
Si1.20
P0.015
S0.015
Cr19.0021.00
Ni14.0016.00
Co39.0041.00
Mo6.008.00
Be0.10
Febal

Alloy Details

Phynox density, melting point, coefficient of expansion, and modulus of elasticity is indicated in the table below:

DennsityMelting PointCoefficient of ExpansionModulus of RigidityModulus of Elasticity
8.3 g/cm³1427 °C12.5 μm/m °C (20 – 100 °C)77 kN/mm²203.4 kN/mm²
0.300 lb/in³2600 °F7.0 x 10-6 in/in °F (70 – 212 °F)11168 ksi29501 ksi

Heat treatment of finished parts

The typical heat treatment of Phynox:

Condition as supplied by AWITypeTemperatureTimeCooling
Annealed
Spring TemperAge Harden520 °C (970 °F)5 HrAir

Properties

The typical mechanical properties of Phynox:

Annealed
Approx. tensile strength< 1100 N/mm²< 160 ksi
Approx. operating temperature depending on load** and environment-185 to +450 °C-300 to +840 °F
Spring Temper
Approx. tensile strength1400 – 1900 N/mm²203 – 276 ksi
Approx. operating temperature depending on load** and environment-185 to +450 °C-300 to +840 °F
Spring Temper + Aged
Approx. tensile strength1900 – 2200 N/mm²276 – 319 ksi
Approx. operating temperature depending on load** and environment-185 to +450 °C-300 to +840 °F

The above tensile strength ranges are typical. If you require different please ask.

 Trade Name registered to Aperam Alloys Imphy
